AREA 65 is an Authorized Distributor of Enapter’s AEM Electrolyzers. Available in various modular sizes, Enapter electrolyzers give you the flexibility to start small immediately and scale up accordingly with respect to the increase in renewable electricity.

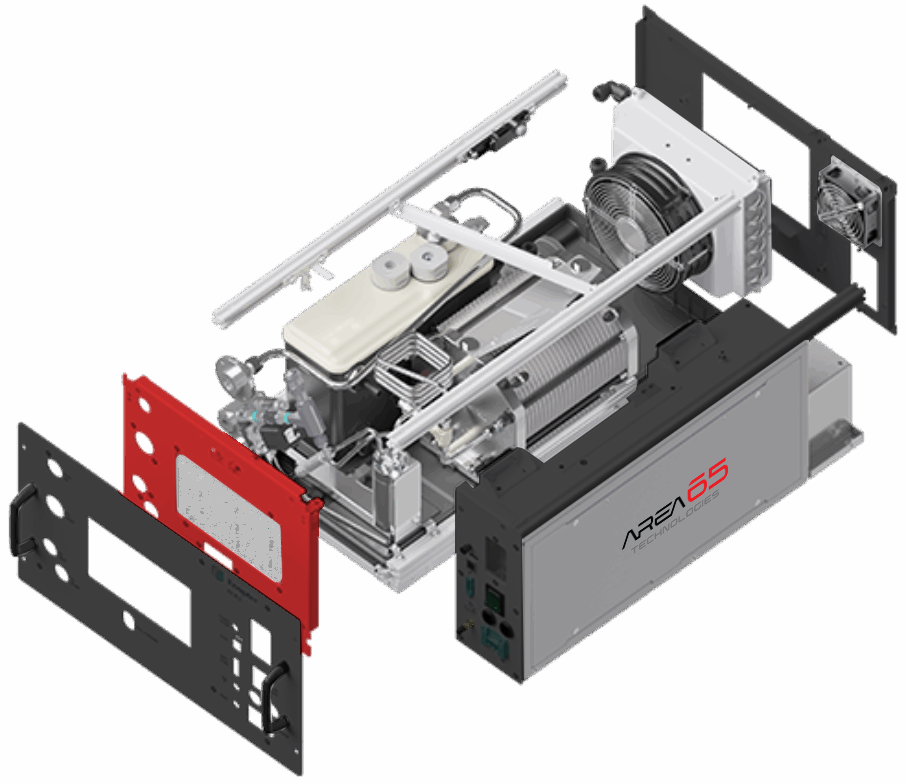

AEM Electrolyzer EL 4.1

Green Hydrogen Solution for Research and Education

Production Rate:

500 NL/h or 1.0785 kg/24h

Module Weight (Empty) :

42 kg

Module Dimensions :

L: 482 mm x W: 635 mm x H: 266 mm

Outlet Pressure :

Up to 35 barg

Purity of Hydrogen :

99.9% (or > 99.999% with optional dryer)

Datasheet Get a Quote

AREA 65 can assemble several modules of the EL 4.1 electrolyzer according to your Hydrogen production needs into a standard 19” cabinet. Optional modules such as fuel cell, DC-DC converter, and battery pack can also be added upon request.

AEM FLEX 120

A flexible system for streamlined deployment of green Hydrogen projects, customizable from 70kW to 480kW.

Production Rate:

25 Nm³/h | 53.9 kg/24h

Outlet Pressure :

Up to 35 barg

Module Weight (Empty) :

3,700 kg

Hydrogen Purity:

99.95% (or > 99.999% with optional dryer)

Module Dimensions :

L: 3.2 x W: 2.5 x H: 3 m

Datasheet Get a Quote

AEM NEXUS

Your responsive, reliable electrolyzer for projects from 500 kW to multi-megawatts – perfect to scale up your green hydrogen production.

AEM Nexus 2500

Production Rate :

500 Nm³/h | 44.9 kg/h

System Efficiency :

51.3 kWh/kgH2

Hydrogen Purity:

99.95% (or > 99.999% with optional dryer)

Power Consumption :

2,305 kW (2.305 MW)

Operational Flexibility :

1% – 100%

Outlet Pressure :

Up to 35 barg

AEM Nexus 1000

Production Rate :

210 Nm³/h | 450 kg/24h

System Efficiency :

51.3 kWh/kgH2

Hydrogen Purity:

99.95% (or > 99.999% with optional dryer)

Power Consumption :

~1 MW

Operational Flexibility :

1% – 100%

Outlet Pressure :

Up to 35 barg

AEM Nexus 500

Production Rate :

105 Nm³/h | 225 kg/24h

System Efficiency :

51.3 kWh/kgH2

Hydrogen Purity:

99.95% (or > 99.999% with optional dryer)

Power Consumption :

~500 kW

Operational Flexibility :

1% – 100%

Outlet Pressure :

Up to 35 barg

Datasheet Get a Quote

START YOUR GREEN HYDROGEN JOURNEY TODAY!

No project is too big or too small. Enapter’s modular electrolyzer concept ensures that we will have the optimal solution for your production capacity. Contact us to discuss your requirements now!
